Color PIN Diagram for SKR Mini E3 V1.2

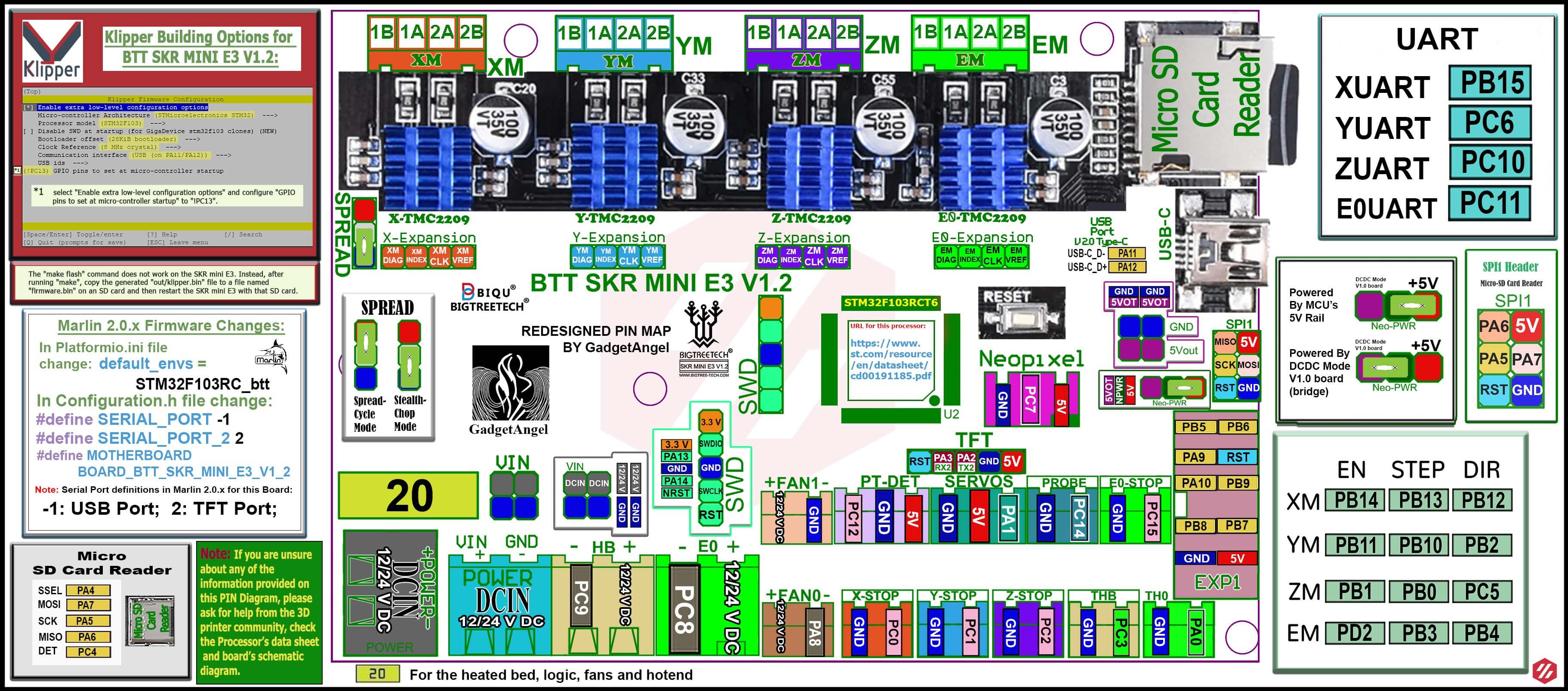

For reference, here is the Color PIN diagram for the SKR mini E3 V1.2

• If you want to open the above diagram, in a new tab of your web browser, and have the ability to zoom and download the diagram in PDF format then click here

• If you want to open the above diagram, in a new tab of your web browser, and have the ability to zoom and download the diagram in JPG format then click here

Original SKR Mini E3 V1.2 Pinout

For reference, here is the original pinout of the SKR mini E3 V1.2

• Note: If you see a conflict between the original pinout and any other source, please refer back to the BigTreeTech SKR mini E3 V1.2 schematic diagram

• If you want to open the above diagram, in a new tab of your web browser, and have the ability to zoom and download the diagram in PDF format then click here

The BTT’s GitHub Repo for the BTT SKR mini E3 V1.2 Board

• BTT’s documentation for BTT SKR mini E3 V1.2 board is located here

---
